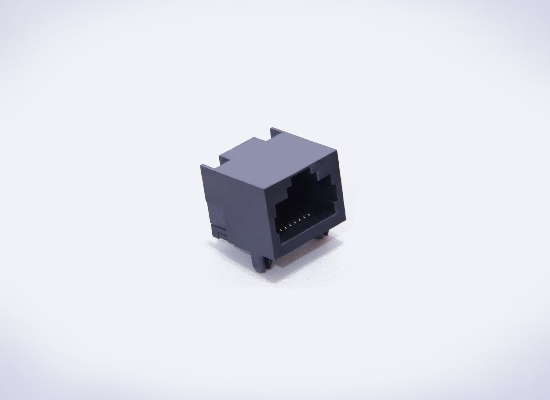

EL2J8X-J1XXS1X
Standard series Modular Jack, shield and non-shielded versions are available
PRODUCT INFORMATION
Connector Type
RJ45
Part Number
EL2J8X-J1XXS1X
Application
AIO, NB, Desk Top, IP Phone, DVD Player, Printer, Webcam
Lead Free Status
Lead Free
RoHS Status
RoHS Compliant
PRODUCT ATTRIBUTES
Number of Positions/Contacts
8P4C/ 8P8C
Mounting Type
DIP / SMD
Housing Material
LCP UL94V-0.
Contact Material
Phosphor Bronze ∅0.46mm
Shielding Material
non-shielded
Insert Material
PBT UL94V-0
LED Size
non-LED
Plating
User selectable
Orientation
Side entry
Tab Direction
Tab up
Soldering Process
Wave soldering
Mating Cycles
> 750 cycles
Packing
Tray / T&R
